How to make a microscope at home: 12 simple steps to build your own microscope.

Want to build your own microscope at home to observe things invisible to the naked eye—like leaf structures, fabric fibers, or tiny specimens? The good news is you can absolutely make a basic microscope yourself with just a few common items.

This article will help you quickly understand how a microscope works and provide step-by-step instructions for making a simple, easy-to-build, inexpensive version suitable for students, parents, or anyone who enjoys exploring science at home. By understanding the lens principles and assembly instructions, you'll have a fascinating observation tool for learning or hands-on science experiments.

Part 1: Installing lenses for a microscope

Step 1: How to choose a microscope tube for home use

• Prepare two tubes with different diameters.

  • Choose a sturdy tube, preferably made of materials like PVC, to ensure your home microscope is durable and stable during use.

  • The smaller tube needs to fit snugly so it can slide smoothly inside the larger tube without being too loose or too tight.

• Cut each tube to a length of about 2.5 cm.

  • Make sure both tubes are of similar length to facilitate assembling the remaining parts.

  • The 2.5 cm length makes the tube compact and easy to adjust when you attach lenses or scopes later.

Step 2: How to reduce light leakage into a homemade microscope lens

• Line the inside of the tube with black paper.

  • Light leaking from the sides of the tube will reduce image quality when you observe.

  • To prevent this, stick a thin layer of black paper along the inside of the tube.

  • Black paper helps absorb excess light, thereby increasing the contrast and clarity for home microscopes.

• Cases where black paper is not needed.

  • If you are using tubing made from a thick, opaque material like PVC, lining it with black paper is not necessary because the tubing itself will block light from entering.

Step 3: How to attach lenses to a homemade microscope

• Attach a lens to each tube.

  • Choose a lens with a diameter that fits snugly into the tube opening to ensure stability.

  • Use super glue and apply a sufficient amount around the outer edge of the tube, avoiding contact with the inner surface of the lens.

  • Hold the parts in place and wait for the glue to dry completely before installing the next components.

• Prioritize lenses with short focal lengths.

  • Short focal lengths increase magnification, making them suitable for DIY home microscopes.

  • You can reuse lenses from disposable film cameras or order replacement lenses from online retailers.

Step 4: How to assemble and adjust the focus of a homemade microscope lens

• Insert the smaller tube inside the larger tube.

  • Insert the open end of the smaller tube into the larger tube so that the two tubes slide smoothly.

  • Once assembled, each end of the tube system will have a lens, forming a complete optical path for observing the specimen.

• How to focus a microscope at home.

  • Focusing is done by sliding the smaller tube in and out of the larger tube.

  • Bring the two lenses closer together or separate them until the image of the specimen becomes sharpest.

  • Just a slight movement is needed to find the correct convergence point; no additional complex mechanisms are required.

Step 5: How to wrap rubber padding around the lens of a homemade microscope.

• Attach rubber discs to each end of the tube.

  • Prepare two appropriately sized rubber discs to wrap around the edges of the lens.

  • Use glue to secure the rubber disc to the outer edge of the lens, avoiding covering the center so as not to affect your view.

• Benefits of rubber coating

  • The rubber disc provides a protective cushion, reducing scratches and impacts when placing the microscope on a table or during operation.

  • The rubberized edges also help the overall device look neater and more refined, giving it a solid feel during use.

Part 2: Making a simple eyepiece for observation

Step 1: How to make a viewfinder for a homemade microscope

• Prepare the film cartridge casing to use as a scope.

  • A viewfinder is not mandatory but helps you maintain a distance from the lens, resulting in a more comfortable and stable viewing experience.

  • Choose a plastic film box with a flat lid and bottom for easy handling.

• Make a hole in the bottom of the film box.

  • Cut a small hole in the center of the bottom of the film box, large enough for the tube to slide through.

  • When handling the tool, do so slowly and keep your hand steady to prevent it from slipping.

• The benefits of a scope.

  • It helps position the eye correctly for observation, reducing direct contact with the lens.

  • This increases stability when you adjust focus or change subjects.

Step 2: How to attach the lens to the film box viewfinder.

• Align the small tube with the hole on the film box.

  • Position the small lens tube so that it aligns with the hole you made at the bottom of the film cartridge.

  • Ensure the pipe is aligned so that it doesn't get misaligned or rub against the edge of the hole when installed.

• Insert the lens tube inside the film box.

  • Slowly push the small tube through the hole so that the part with the lens fits snugly about 2–3 cm inside the film cartridge.

  • If the tube doesn't fit through, adjust the hole slightly larger until it's a proper fit, doing so gently to avoid cracking the box.

• The purpose of this assembly step

  • It helps to fix the eye's position when observing, creating a stable scope.

  • It improves focusing capabilities and increases comfort when using a homemade microscope.

Step 3: How to secure the eyepiece for a homemade microscope

• Secure the scope in place.

  • After inserting the small tube into the film cartridge, use appropriate adhesive to secure the viewfinder in place.

  • Apply sealant only around the contact point between the small tube and the film cartridge, ensuring the sealant does not get into the lens.

• Wait for the glue to dry completely.

  • Leave the device undisturbed for a few minutes to allow the adhesive to set.

  • Once the glue has dried, you can look through the scope and observe without worrying about the scope tilting or shifting.

Part 3: Making a sturdy stand for the microscope

Step 1: How to prepare the base for a homemade microscope

• Choose the material for the base.

  • Plywood or rigid plastic is preferred as a stable base for the microscope.

  • The ideal size is approximately 10 x 10 cm, with a thickness of nearly 2 cm to keep the device stable during observation.

• Cut the base plate to the correct size.

  • If you need to cut any material, ask an adult for assistance to ensure safety.

  • The goal is to have a sturdy, square base plate to easily secure the rest of the homemade microscope components.

Step 2: How to make a stand for a homemade microscope

• Choose the material for the support posts.

  • A cylindrical piece of wood or a short PVC pipe can be used as a support.

  • Choose a sturdy material to keep the lens stable during use.

• Cut the vertical posts to the appropriate size.

  • The column height of approximately 1.3 cm provides sufficient elevation for the microscope.

  • When cutting materials, handle them carefully and ask an adult for assistance if needed.

• Attach the uprights to the base.

  • Use strong adhesive to secure the pillar to the prepared base plate.

  • Wait for the glue to dry completely so the stand is stable before assembling the next parts.

Step 3: How to attach the microscope lens to the stand.

• Place the microscope lens on the stand.

  • Position the lens so that the lens element is facing downwards and directly above the base.

  • This spacing makes it easy to place the specimen underneath for observation.

• Attach the lens to the stand.

  • Use strong glue or plastic cable ties to secure the lens firmly to the tripod stand.

  • When fixing the tube in place, keep it aligned so that the observed image is not distorted.

  • Wait for the glue to dry completely before testing.

Step 4: How to test and adjust the focus of a homemade microscope

• Prepare specimens for observation.

  • You can start with simple examples like a drop of water, a strand of hair, or a small piece of leaf.

  • Place the specimen on the base, directly below the lens.

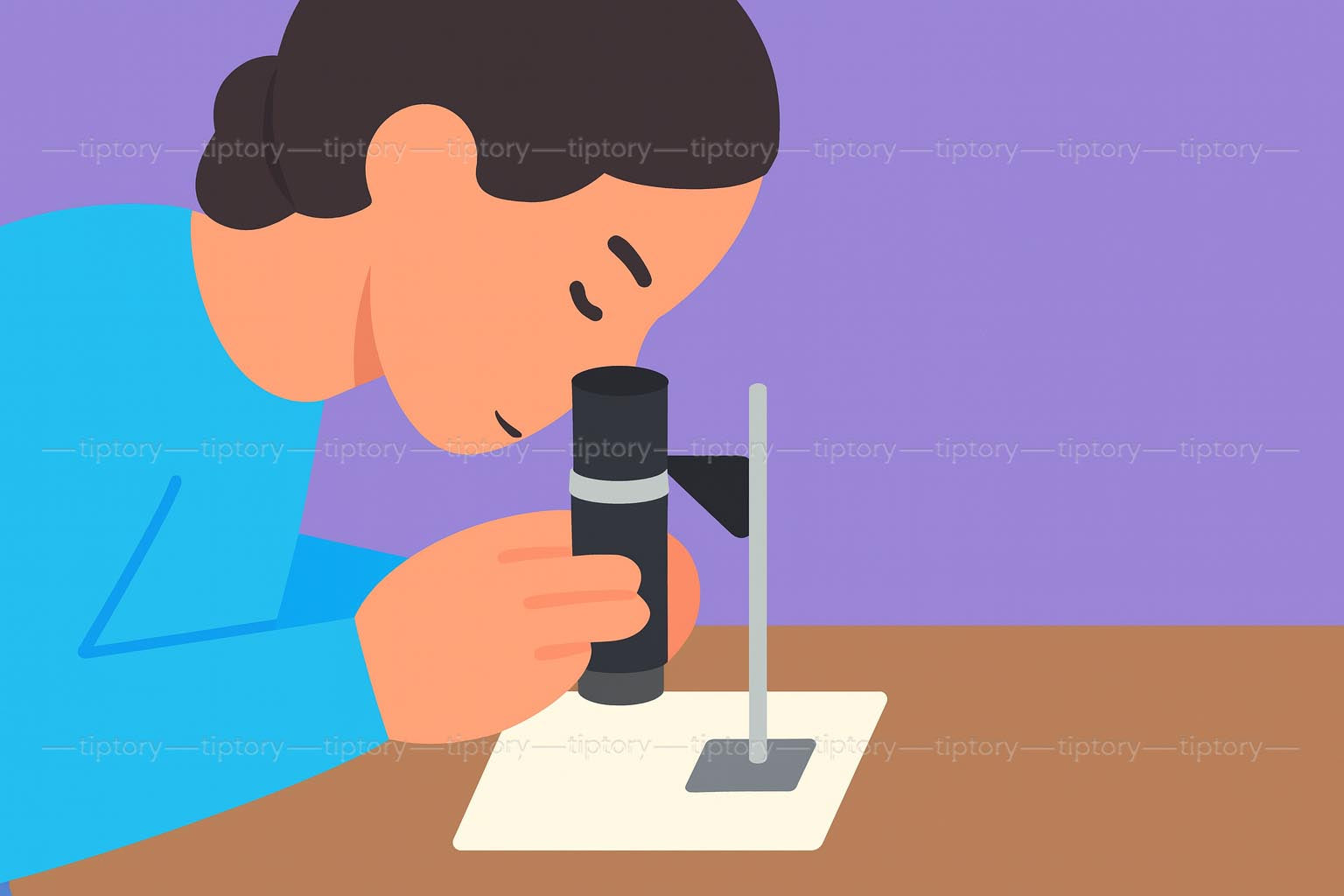

• Observe the image through the viewfinder.

  • Look through the telescope and down at the specimen.

  • Move gently to find the best vantage point.

• Adjust the image focus.

  • Slide the viewfinder or scope up and down to move the two lenses closer together or further apart.

  • Adjust gradually until the image becomes sharp.
